Layer One PCB — Custom electronics, by Dean.

Device design.

The work. Real boards.

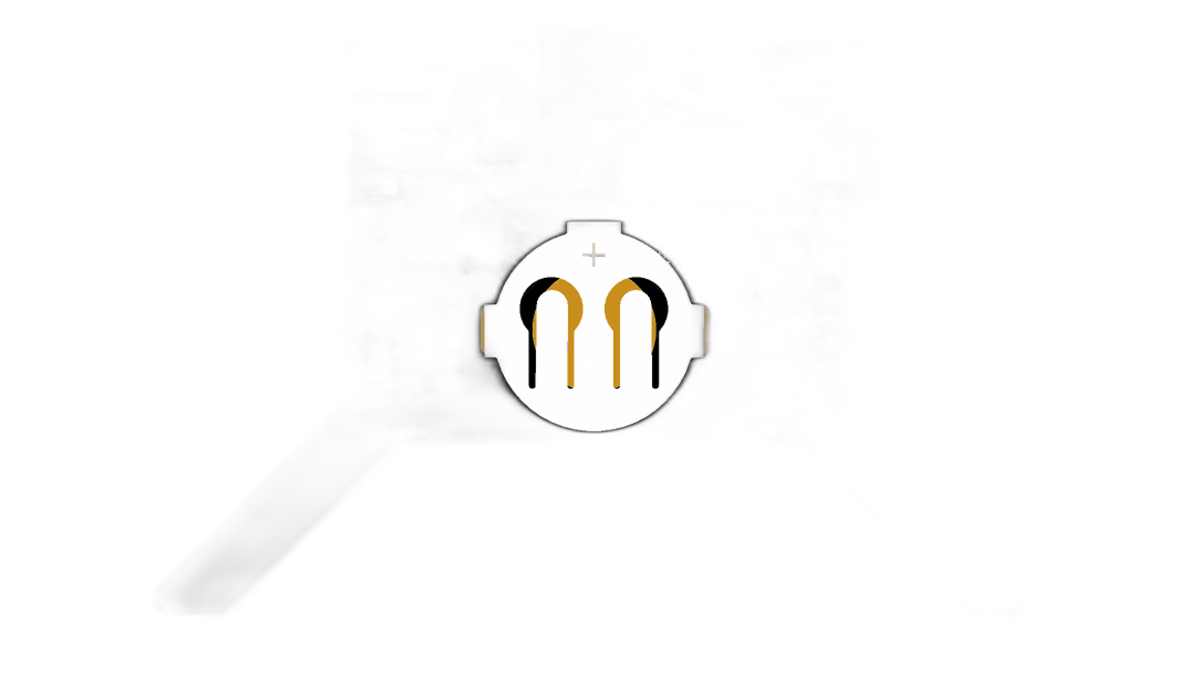

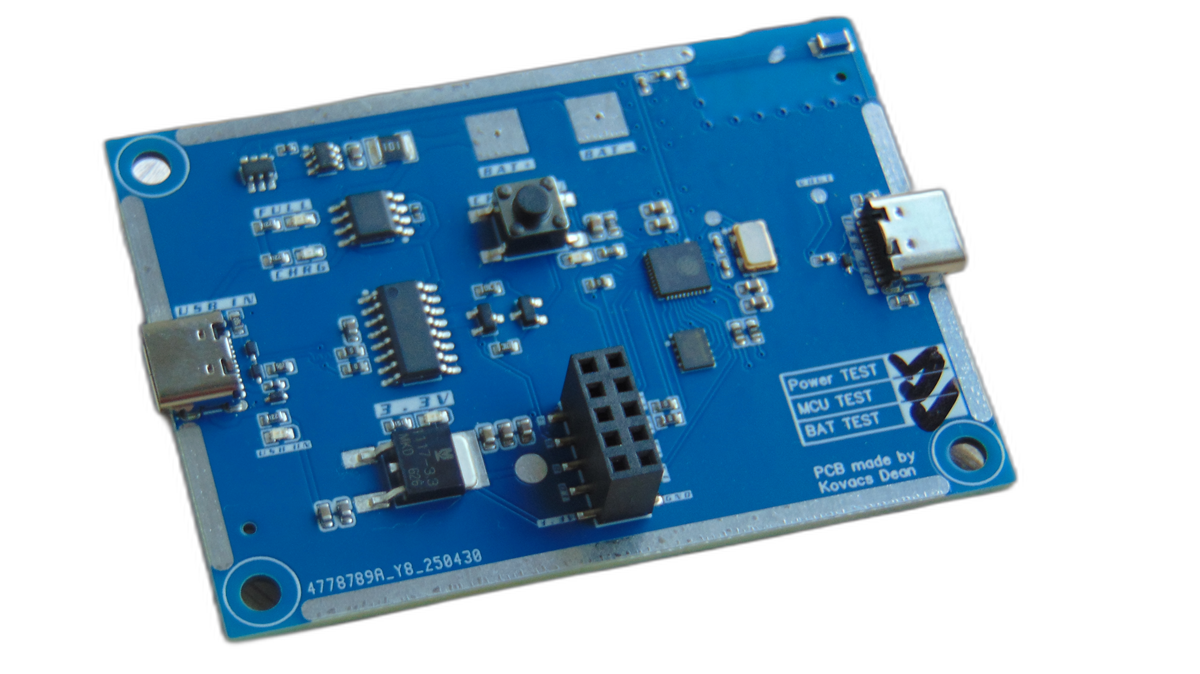

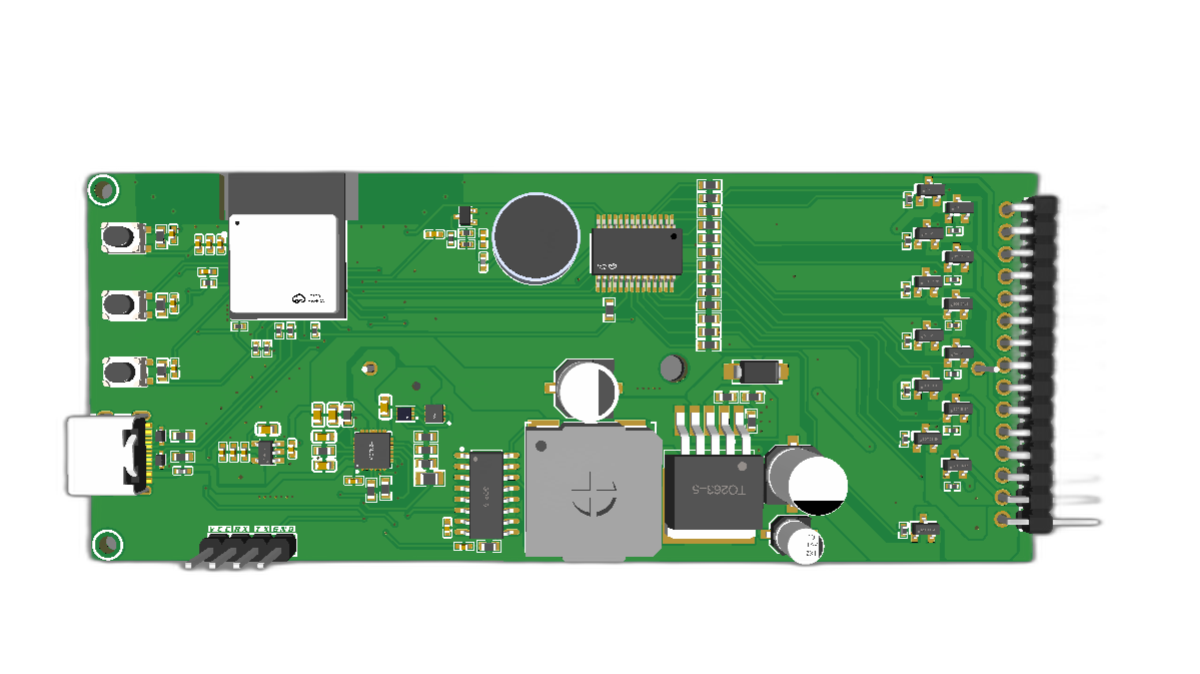

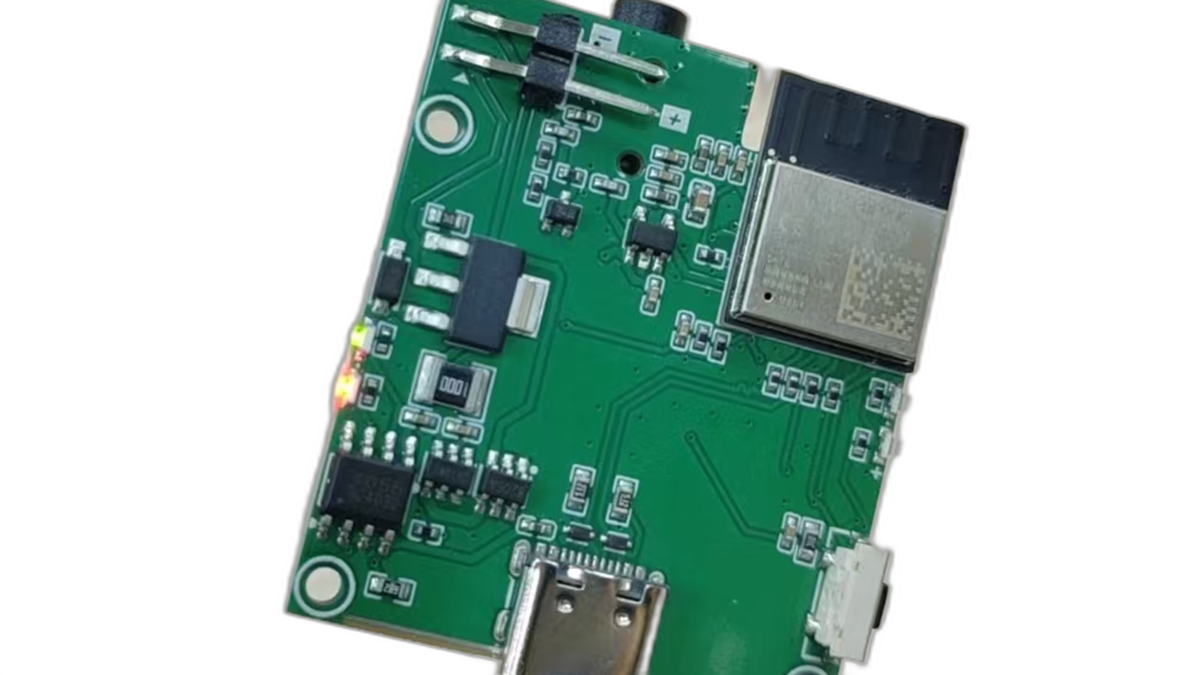

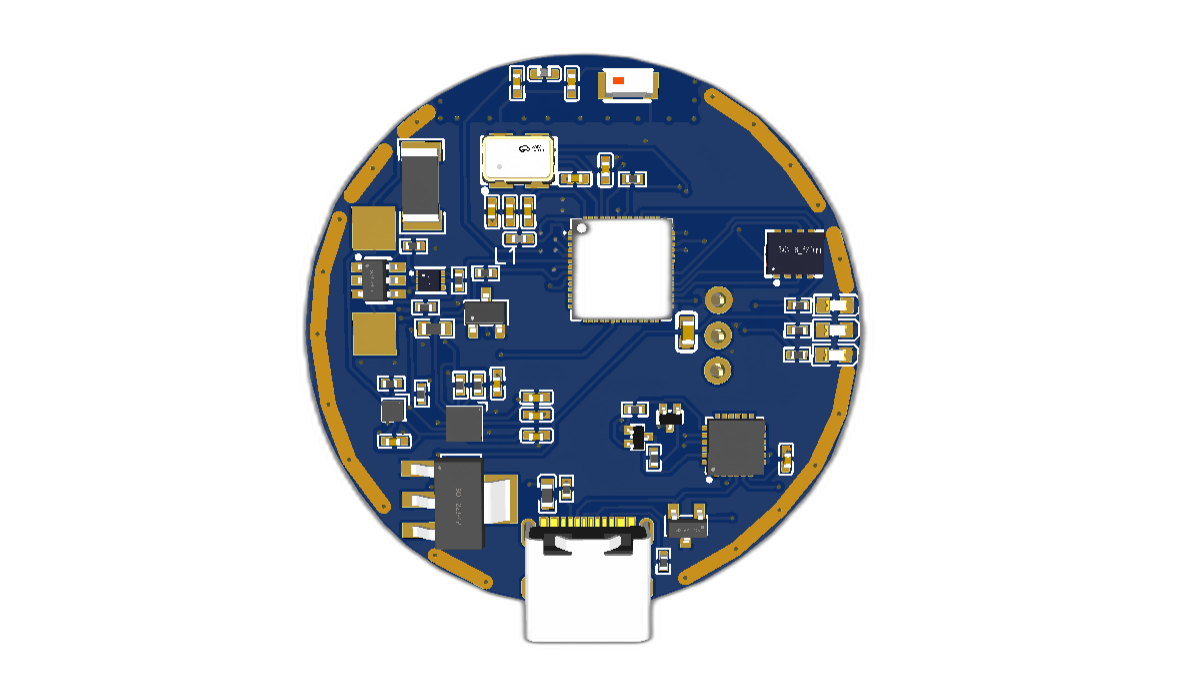

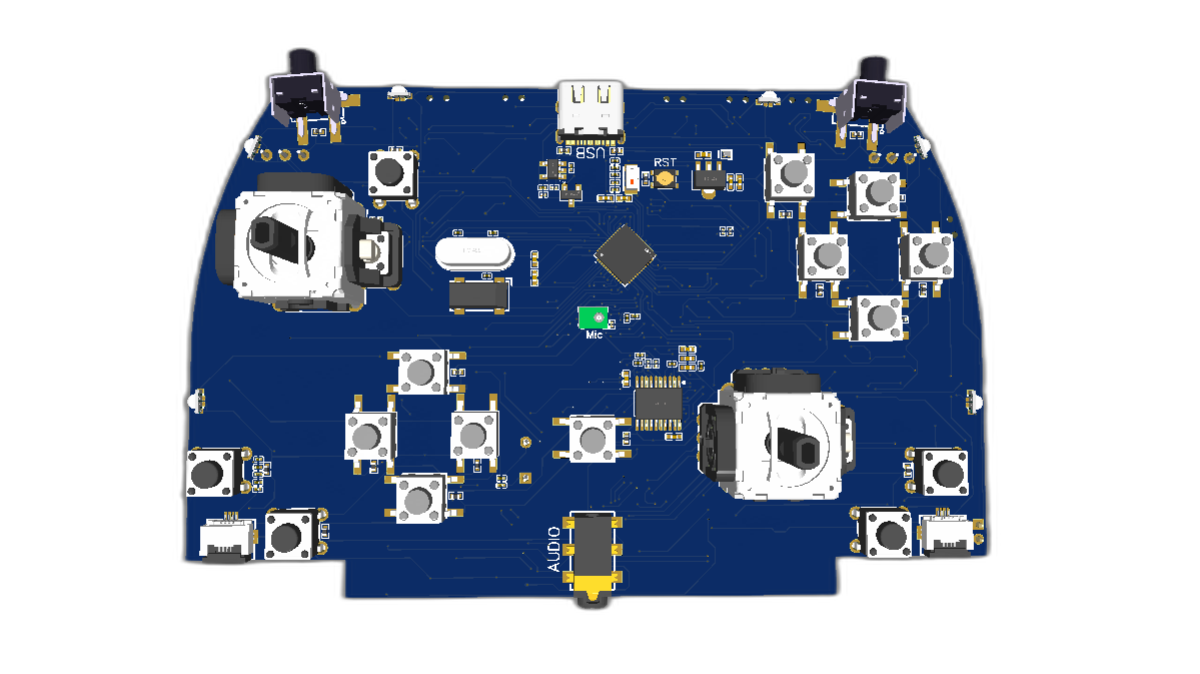

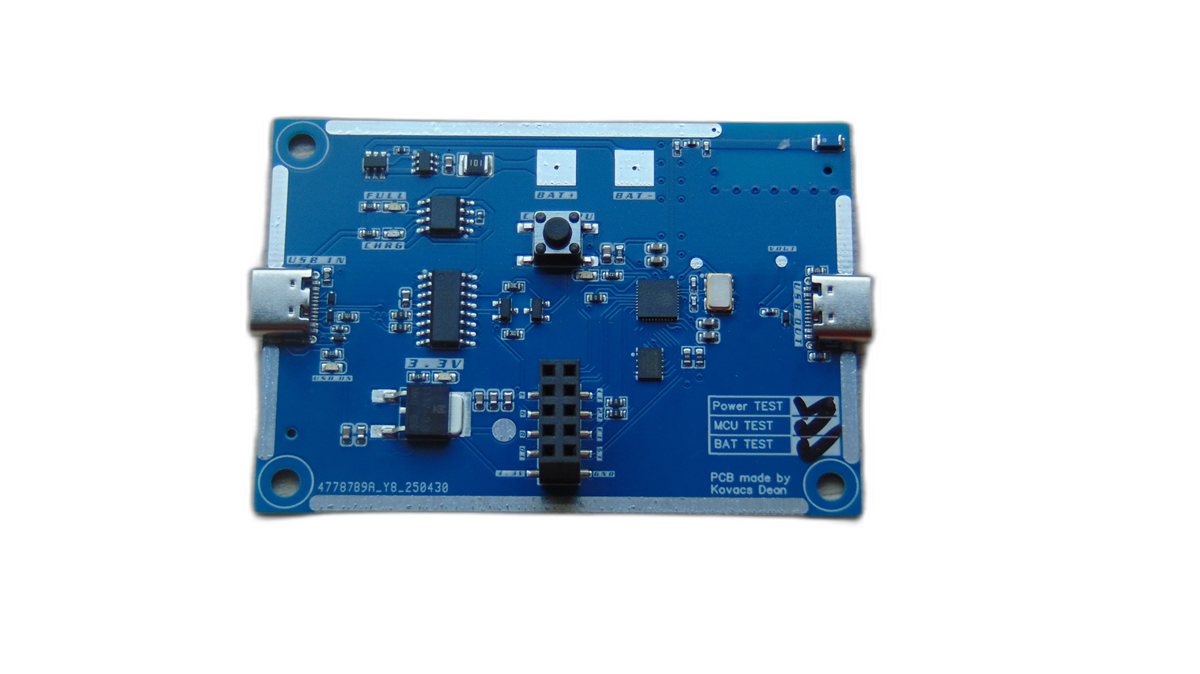

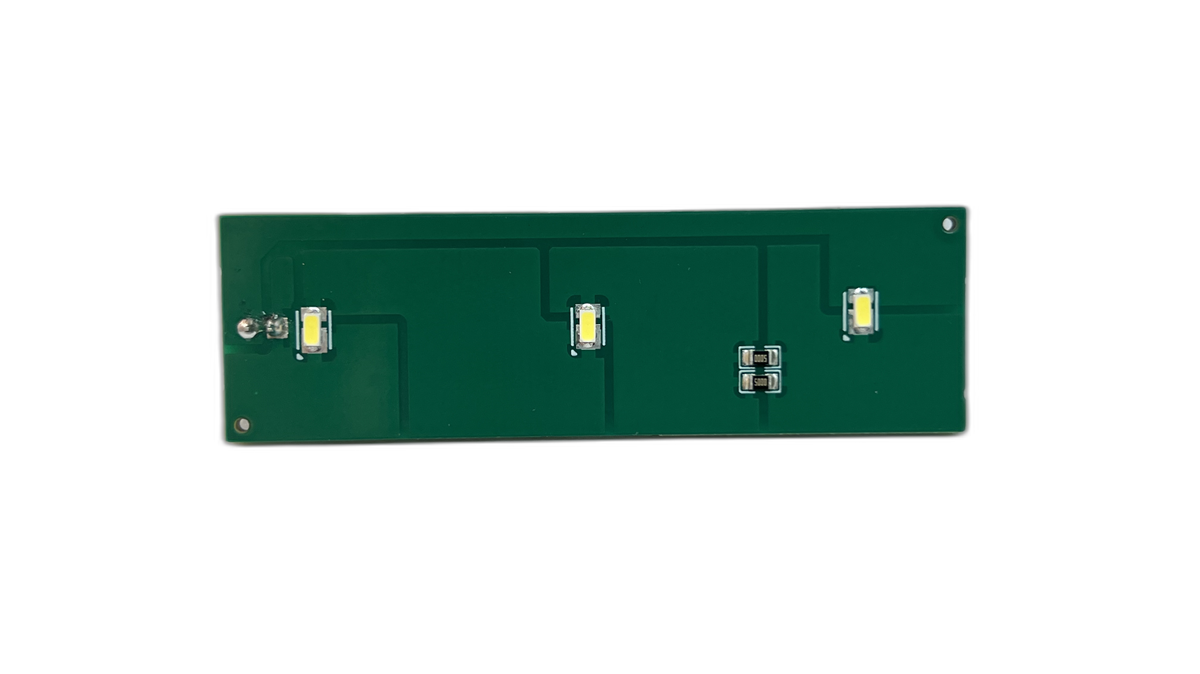

A selection of boards I designed — tap one to see the full case study.

Two ways to work. One engineer.

Pick what you need — you can always start with the board and add the rest later.

Most complete

Full project

From idea to a finished, working product.

  • Hardware design — schematic and multi-layer PCB layout
  • Firmware — functional firmware and test firmware
  • Manufacturing & assembly with DYC Electronics

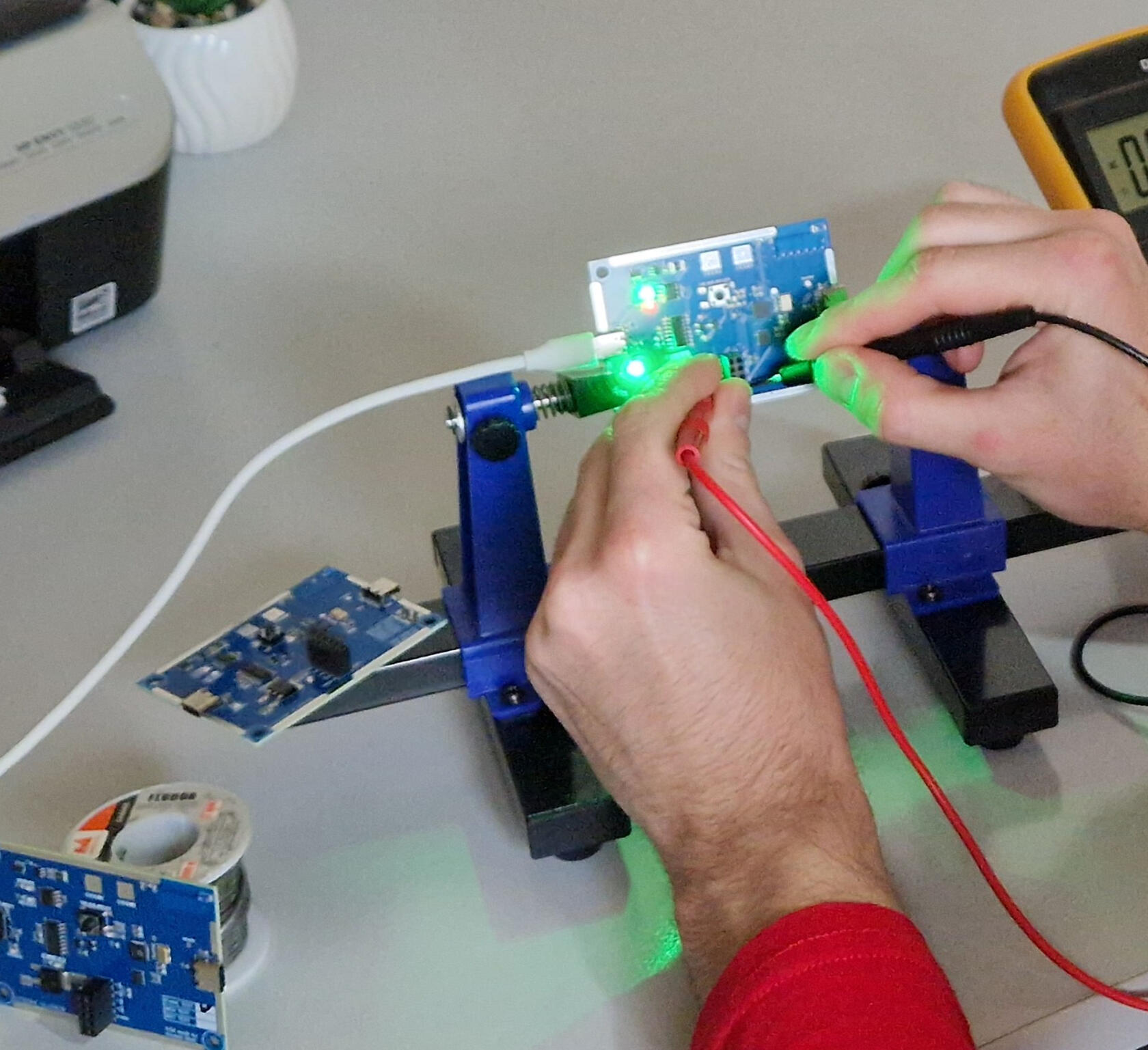

  • Testing & validation on the real board
  • Enclosure — designed or sourced for you
  • Any external parts sourced when the project needs them
Start a Full project
Design only

PCB only

The board, ready to manufacture.

  • Schematic capture from your idea or sketch
  • PCB layout — 2 to multi-layer, impedance control
  • Fab-ready files — Gerber, BOM, Pick & Place
  • 2D / 3D model of the board
  • DRC & DFM check before it goes to the factory
  • Manufacturing with DYC Electronics, if you want it
Start a PCB-only project

Working together. Always in the loop.

Every project follows the same three stages — and you see each one as it happens.

Included in every project

Your own private project portal.

One link, everything in one place. No digging through emails — every document, update and final file lives in your portal from day one.

  • Invoices & payment status
  • Planning & Project Info
  • Progress updates with photos
  • Notes & questions, any time
  • Estimated delivery date
  • Final files, ready to download
Your project
Started · 📦 Estimated delivery date
010203

Invoice · ✓ Paid

Planning

Project Info

Update – 09.11

Update – 07.11

Update – 05.11

Notes & questions“Could we move the USB-C to the left edge?” · Dean: Sure, done in the next update.

Frequently asked.

What's the difference between Full project and PCB only?

Full project covers everything from idea to finished product: hardware design, firmware, manufacturing and testing by DYC Electronics, and an enclosure — designed or sourced by DYC. If your project needs any external parts or components, DYC can source those too. PCB only is classic PCB design — schematic and layout with fab-ready files.

How long does a typical project take?

A simple two-layer board takes around 1 week. A more complex board takes around 2–3 weeks. You get an estimated delivery date in your planning.

What do I need to start?

Whatever you have — a description of the goal, a sketch, a schematic, a list of parts. Fill in the Project Info form, attach your files, and we'll fill the gaps together.

How do I follow the progress?

Every project gets its own private portal with your documents, progress updates, photos and final files. You can leave a note under any update.

Do you handle manufacturing?

Yes. I can hand you a fab-ready package, or take care of the whole production process with DYC Electronics for you — I stay in touch with them from start to finish. Manufacturing costs are quoted separately and paid by you.

Can you write the firmware too?

Yes — firmware and test code are part of the Full project, so the board arrives already working.

Do I own the design files?

Yes. Native EasyEDA / KiCad source, Gerber, BOM, CPL and documentation — all yours.

Can you sign an NDA?

Yes. I'm happy to sign an NDA before you share any details of your project — just mention it in the Project Info form or by email, and I'll sign yours or send you mine.

How does payment work?

You choose: pay in full at the start, or 50% to start and 50% at delivery. Invoices and payment status are always visible in your portal.

Dean Kovacs
About & contact

Hi, I'm Dean.

I'm an electronics engineer focused on PCB design. I turn ideas into clean, production-ready circuit boards — and with DYC Electronics, into finished products.

Layer One PCB is what I do full-time: over 300 boards designed and shipped, for workshops, products and labs across Europe and beyond. One engineer owns your project from the first sketch to the tested board.

300+boards shipped
3EDA tools
1engineer per project
RObased in Europe
Emaillayeronepcb@gmail.com
DYC ElectronicsManufacturing partner · DYC Electronics
Production, assembly, testing, enclosures and part sourcing.
